Innokin Proton Plex Mod Kit Review
The Innokin Proton Plex review will cover this new dual 18650 temperature control vape mod. This mod will fire up to 235 watts and has a full temperature control suite. Adjusting settings is a bit different. Instead of up and down buttons, the Proton Plex has a joystick style button. That’s interesting! The kit also comes with the Innokin Plex vape tank with mesh style coils.
The Proton Plex mod is really the same as the Innokin Proton vape mod that came out a few months ago. The difference is that the Proton Plex comes in three new colors. Also, it comes with the Plex vape tank. And that tank has some amazing new coils. Innokin is a company that is on a role. Best of all, this complete kit will sell for less than $80. I am giving a lot away early in the Innokin Proton Plex review, obviously you can tell that I am going to recommend it. But I will back it up!
I like the look of this mod. It is true that they all look very similar, but I do like the box mod design with rounded edges and big, colorful screen. The elongated fire bar on the side is very easy to use and, in my opinion, adds to the comfort level. Another thing that you might like is that the Innokin Proton mod is about the most compact dual 18650 vape mod that I have seen.
Innokin is a company that has been involved in vapor products since the very beginning. In the early days, Innokin made classic KR808D cigalikes! Then they made a number of early mods. As time went on, mods became more sophisticated. While Innokin has been making vape gear the entire time, lately they are re-emerging as a major player in the new and advanced mods of today. They might be better known for making smaller mods with an internal battery, but the Innokin Proton Plex kit is further evidence that Innokin is stepping it up.
It seems to go in cycles. Each of the manufacturing companies taking turns making the hottest mods of the day. Well, Innokin is stepping up and they should are garnering some very well deserved attention. So just in case you have not heard of Innokin, they have been around for a while. And they are showing that they are still true pros developing excellent quality vapor making products.
Innokin Proton Plex Review
We will get into the Innokin Proton Plex review asap but first, a little background. As mentioned, the Proton mod has been out for a few months. This new version comes with a new tank, but is the same mod. That is good news because after the last four months we can report that the Proton vape mod is a proven performer. In fact, it is an outstanding vape mod. That is the good news! The Proton Plex comes in three new and very attractive colors.

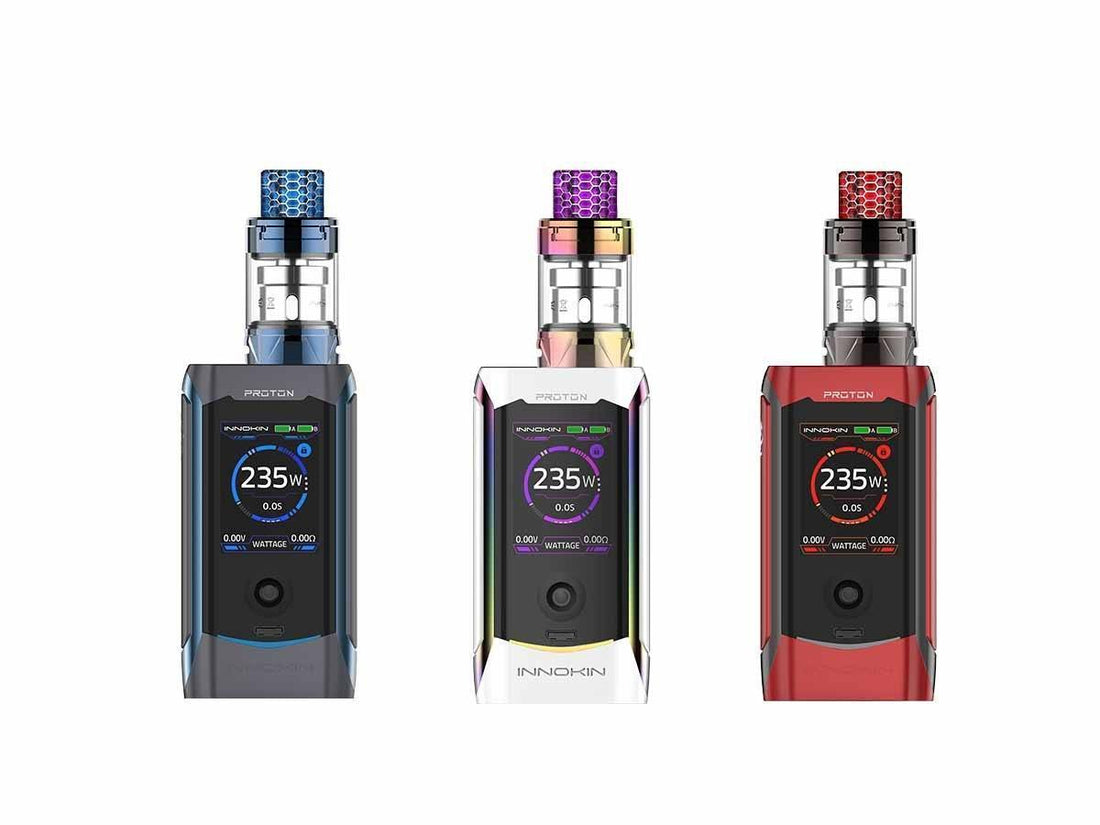

- White and Blue
- Black and Blue
- Black and Red
All of these colors look amazing. I especially like the white one. The large color screen looks fantastic. I know, I am talking all about looks. Normally, I don’t care much about looks, but the Proton Plex really got my attention. My Innokin Proton Plex review will get into how it vapes. But first, what does this mod do?
Brass tacks. This is a 235 watt, dual 18650 mod controlled by the Aethon chipset. Now, we know a lot about this chipset. It has been tried tested and true. My favorite thing about it is the ease of accessing the menu system. It fires plenty fast and is very stable and reliable in temperature control. It may not be the fastest, but I am telling you there is no lag from fire button to atomizer action. The chipset earns top marks.
Innokin Proton Mod Specs
We have a long list of Innokin Proton mod specs here! But don’t be intimidated. Yes, this mod does a lot and a long list of specs can make it look complicated. But it is an easy to use mod. The fact that it can do so much is a bonus. Here we go:
- Size. The Proton mod is 85 mm tall by 44.6 mm wide and 29.6 mm thick
- That is 3.3 inches tall by 1.75 inches wide and 1.16 inches thick
- These dimensions are very compact for a dual 18650
- Speaking of, the Proton mod is powered by two 18650 batteries
- Batteries are sold separately, get them here.
- The wattage range is from 6.0 Watts up to 235 Watts
- Voltage output range is from 0 to 9
- The temperature control range is 300 F to 600 F
- Innokin Proton Plex atomizer resistance ranges from 0.05 to 3.5 ohms
- Latest version of Aethon chip
- Side fire bar and joystick controller
- 1.45 inch vibrant color display screen, 6 color themes
- Individual battery life monitor
- Pre-heat or ramp up function
- TCR settings and memory
- Full temp control for Ni, Ti, and SS
- The firmware is upgradeable
- Stainless steel 510
- 2 amp battery charging
- Maximum 40 amp output (so you can legitimately reach 235 watts)
- Dual circuit and reverse polarity protection
- Low resistance protection
There you have it! And that is all just for the mod! We will get to the Plex tank in a bit. But like I said, most of these specs are standard. This mod is capable of complex vaping functions but is also easy to use.
Using The Innokin Proton Plex Mod Kit
The first thing to do when using the Innokin Proton Plex mod is to put in the batteries! The battery door is located on the bottom of the device. The battery door is easy to open and close. Once the batteries are in, there are no rattles as everything fits nice and tight. Three clicks of the fire bar will turn on the mod.
In this case, the full color screen is used beautifully to assist in navigation. It is not color just for the sake of color. The variations help you see what you are adjusting.By the way, when making adjustments the joystick is simply terrific. The joystick can be used to access a number of menu shortcuts. And look, what I really like is that Innokin includes a quick reference guide to help the user navigate all of the options so quickly and easily.
The mod works beautifully and is very comfortable to handle. Daniel at DJS Vape Labs says it is one of his favorite mods. He did a bunch of electronic testing and found it to be very accurate. And the vaping is awesome. The mod fires fast and I get a very, very consistent vaping experience.
Innokin Plex Vape Tank Review
Time for the Innokin Plex vape tank review. I love this tank. If you are familiar with the Innokin Scion tank, the Plex and Scion coils are interchangeable. But I have found that the new Plex coils are better. They are very long lasting and the flavor is outstanding. The sliding top fill is one of the best. The juice port is big enough for a glass dropper. The tank is very well made and has a bubble tank to accommodate the very large coils.
Here are the specs of the Plex tank:
- Plex Tank Size: 54mm by 28mm (4ml version)
- 54 mm by 24mm (2ml TPD Euro version)
- Vape Juice Capacity: 4ml or 2ml
- Material: Stainless Steel and Pyrex glass
- Plex Coils: Plexus 0.13ohm Coil
- Plexus Scion 0.15ohm Coil
- Thread: 510
The Plexus Scion coils are a mesh coil. Mesh coils are here to stay and for good reason. They deliver of flavor big time and they last longer than other types of coils. Plexus coils are rated at 0.13 ohms and they promise to be extra long lasting. These coils are huge! Great flavor.
